Features:
1) High Luminous Efficiency, up to 135lm/watt.
2) Super brightness Osram LED chip, LM80 report available.
3) Superly reliable well-known brand Meanwell HBG LED driver, which with built in 1-10V dimming function.
4) Unique appearance, innovative heat sink design ensures superior heat management.
5) Low operating temperature, makes it extremely verstile under different easy/ hard operating conditions.
6) Color temperature 3000k, 4000k and 6000k are all available, or we could customize the CCT as per customer‘s demand.
7) Superior color rendition compared to conventional luminaire, CRI>80.
8) Global Voltage Input 90-305VAC, 50/60Hz.
9) Light weight, 30%-50% shipping cost saving.
10) Easy installation, suspending installation or wall mounted.
11) Environmental friendly. Lead and mercury free.
12) Resistant to shock and vibration.
13) Start without delay and flicker free. Instant ON/OFF operation.
14) Long operation life time, above 50,000hours. Low maintenance costs.
15) CE and RoHS approved.
16) 5 Years Warranty.

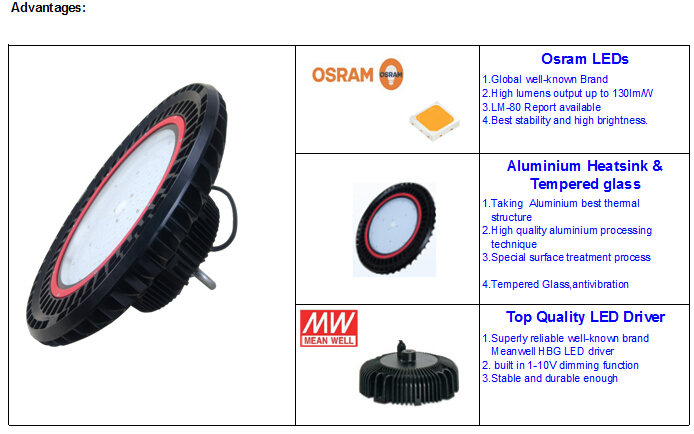

Advantages:
.jpg)
Specifications:
Item No.: HB6240
Product Model: LM-HBG395O240Y06-WW/NW/CW
Power (W): 240Watts
Size(mm): ￠395*196.50mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/6000K
Luminous Flux: 32400lm（135lm/W)
LED Quantity: 315Pcs
Led Type: OSRAM/PHILIPS LED
Beam Angle: 60°/90°/120°
CRI: 85Ra
PF: 0.95
IP Grade: IP65
LED Driver: MEANWELL-HBG -240
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Lifespan: 50,000hours
Warranty: 5 years

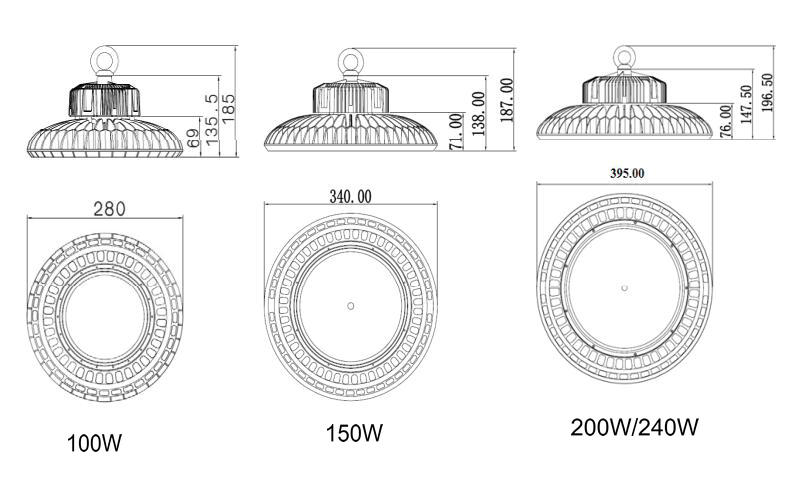

Dimmensions(mm):
.jpg)

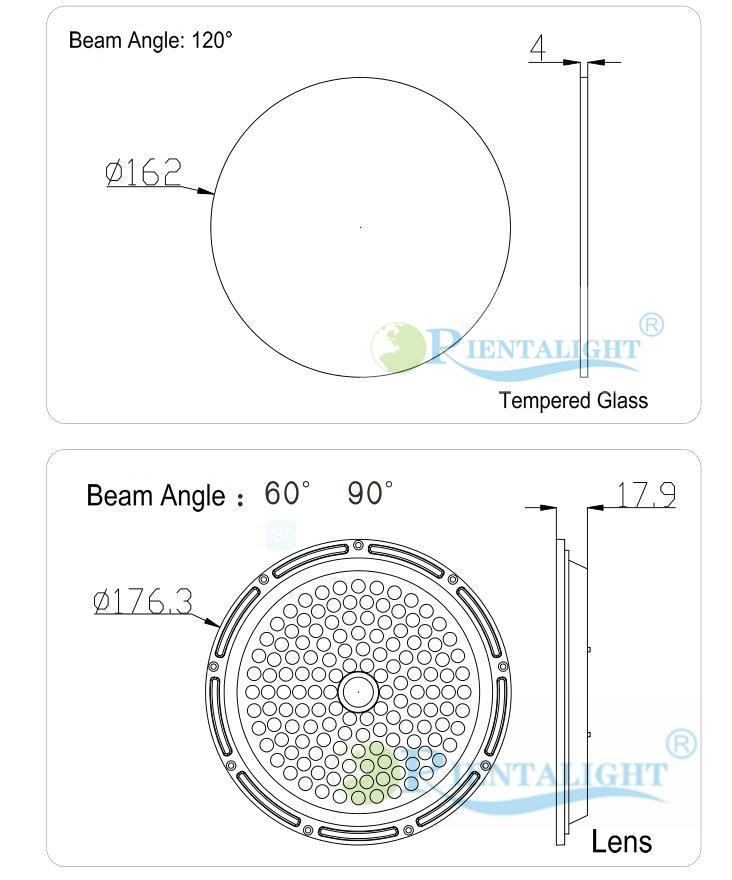

Beam Angle:
.jpg)

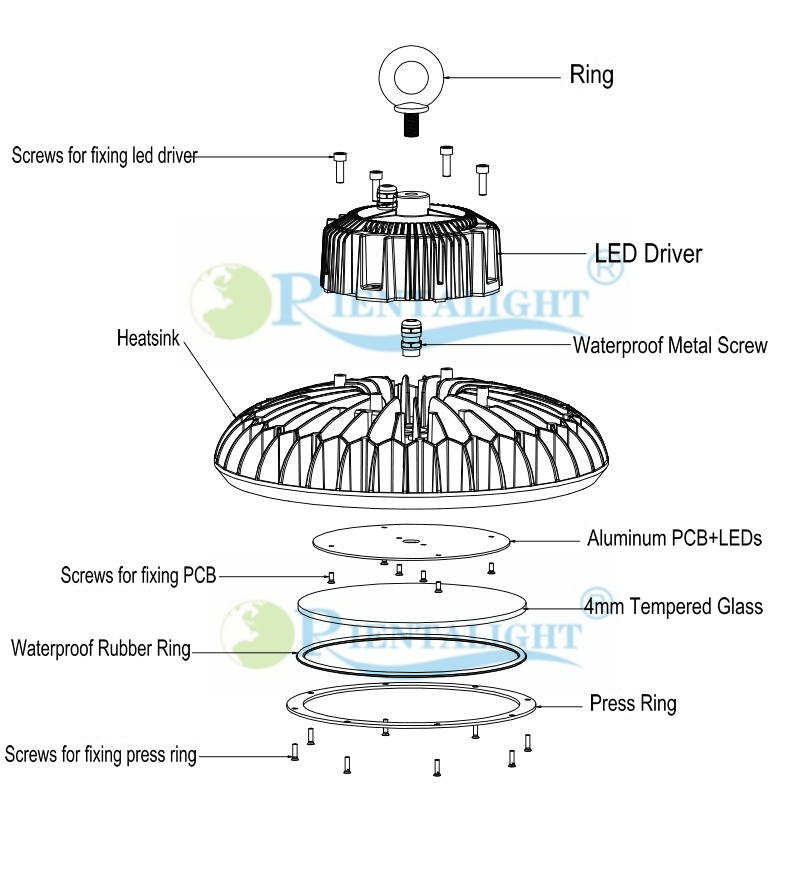

Exploded View:
.jpg)
Applications:
Factory lighting,Recreation center lighting, Stockroom lighting, Supermarket lighting,Warehouse lighting, passway lighting, Shop lighting etc.

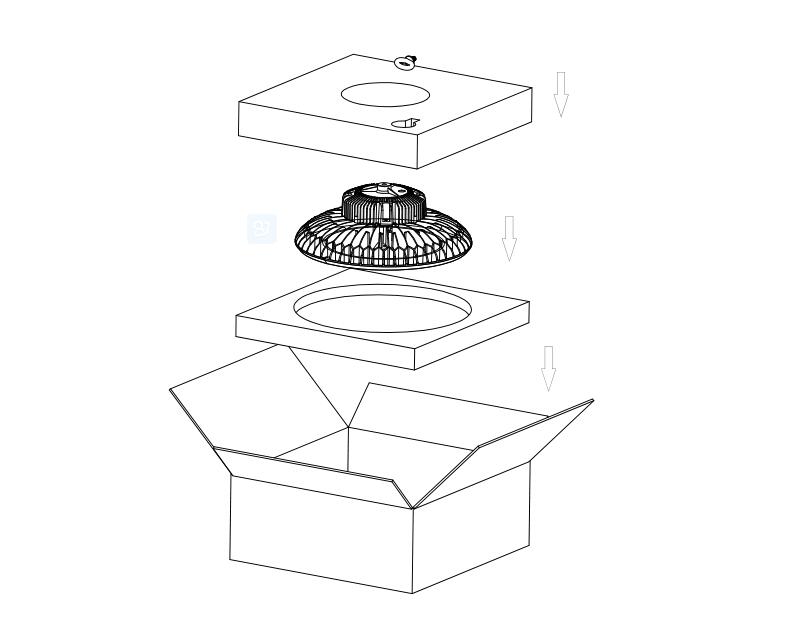

Packing:
.jpg)
Aging Test:
FAQ for UFO led high bay Light:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 working days, mass production time needs 8-9 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
